New Options:
With this kind of project, there will always be further ideas and revisions that develop as the project progresses. Listed here are some of the more recent project variations...

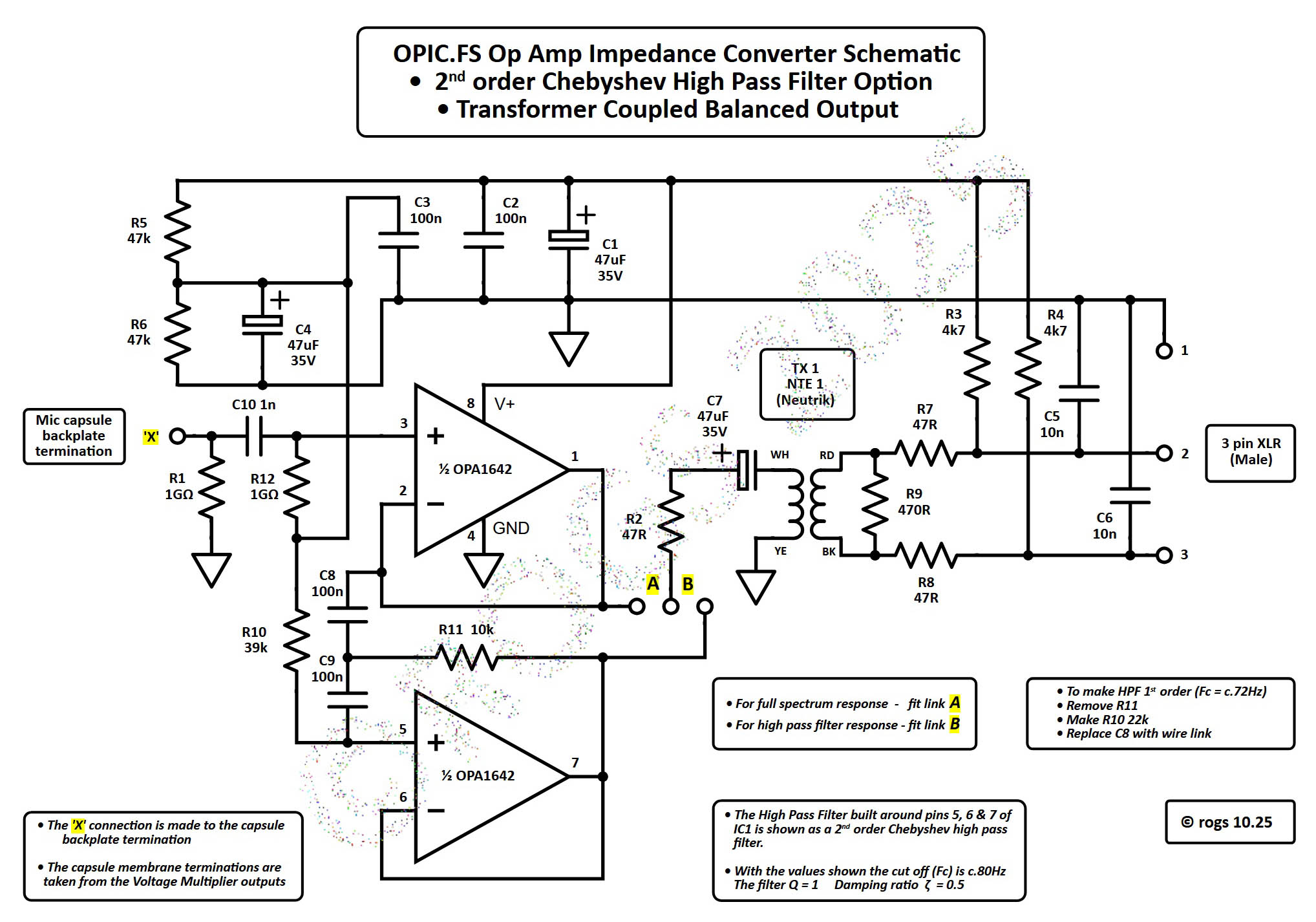

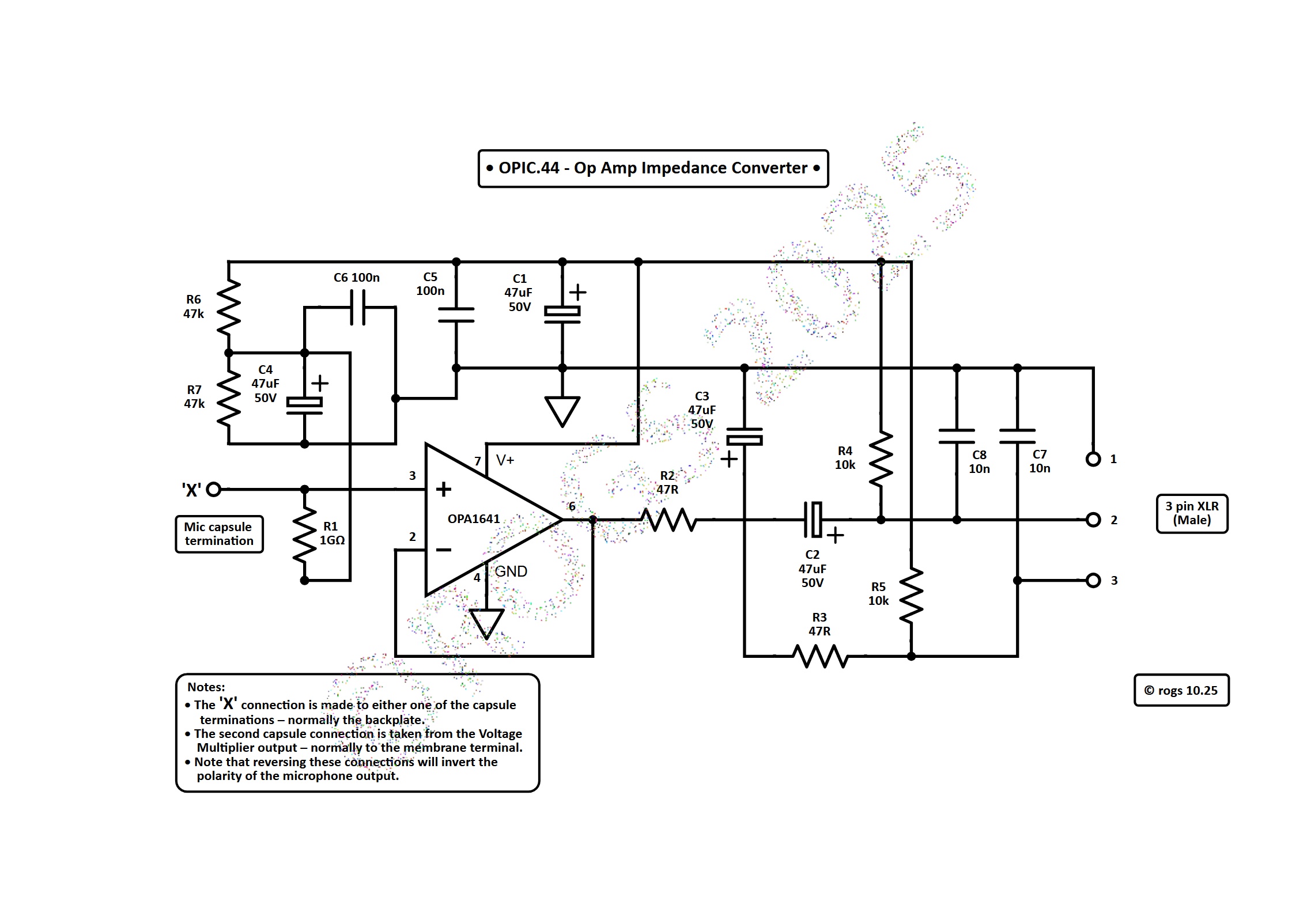

OPIC.FS is a new version which incorporates all the 'extras' that have been added to the project over the last couple of years...
• Designed to use a dual sided LDC capsule, and to fit into a U87 style donor body
• A transformer coupled balanced output
• An optional Chebyshev 2nd order high pass filter
• A three way pattern select option - Omni, Figure of 8 or Cardioid
• A selectable attenuation 'pad' option, the depth of which can be adjusted to suit individual requirements
These additional functions should expand the options available to those who enjoy experimenting with OPIC ideas !
• Just click on the image below for a PDF of the OPIC.FS project details •

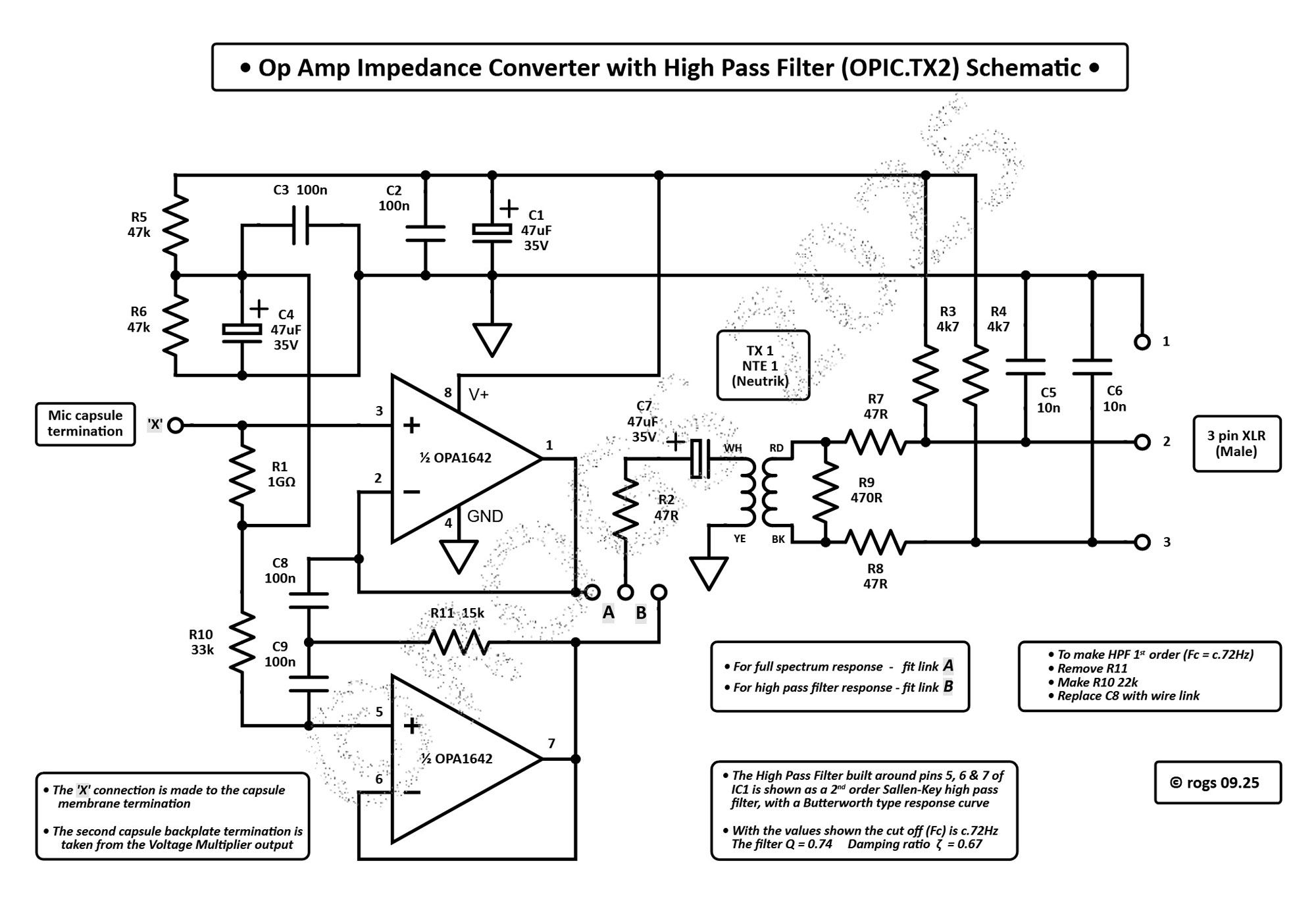

OPIC.TX2 is a transformer coupled version of the original OPIC circuit, fitted with a Neutrik NTE 1 transformer on the output.
• The impedance converter is functionally identical to the other OPIC versions, but is fitted with a small transformer to provide a true balanced output in place of the single sided capacitively coupled standard OPIC output, which uses passive impedance balancing.
• The TX2 version also includes an optional Butterworth 2nd order high pass filter, which may be configured from the positioning of a single link on the stripboard.
• That function could also be performed by a simple SPDT switch fitted externally, if required.
• The voltage multiplier employs the same Hartley ocillator configuration used in the famous 'Schoeps CMC5' schematic, to create a simple circuit with a low component count, that can provide the required high value DC polarisation voltage for the microphone capsule.
• The TX2 version of this voltage multiplier also includes the option to add a 'pad' to the microphone circuitry, if required.
The original OPIC concept provides for maximum output signal levels of up to +20dB, which essentially meant that any overloads were likely to occur in the following pre-amp, rather than in the mic itelf.
However, the addition of an output transformer means that it is more likely that the mic sensitivity may need to be reduced when recording loud sound sources, to prevent the transformer core becoming saturated - especially at low frequencies - and possibly adding distortion.
This new pad arrangement is also activated via a simple link or SPDT switch. It can be adjusted to offer any depth of pad required, by simply adjusting an internal potentiometer, to allow a lower polarisation voltage to be applied to the capsule.
• The OPIC.TX2 version is intended to be fitted into a BM800 style body.
• Just click on the image below for a PDF of the OPIC.TX2 project details •
OPIC.TX is a transformer coupled version of the original OPIC circuit, fitted with a Neutrik NTE 1 transformer on the output.
• The impedance converter is functionally identical to the other OPIC versions, but is fitted with a small transformer to provide a true balanced output in place of the single sided capacitively coupled standard OPIC output, which uses passive impedance balancing.
• The voltage multiplier employs the same Hartley ocillator configuration used in the famous 'Schoeps CMC5' schematic, to create a simple circuit with a low component count, that can provide the required high value DC polarisation voltage for the microphone capsule.
• The OPIC.TX version is intended to be fitted into a BM800 style body.
• Just click on the image below for a PDF of the OPIC.TX project details •
OPIC.45 is a new multi-pattern version of the original OPIC circuit, designed to work primarily with Arienne Audio's 'flat 47' dual sided capsule. Other dual sided LDC capsules - with well matched outputs - should also work OK.
• The impedance converter is functionally identical to the OPIC.42 version, but is fitted to a smaller stripboard, to simplify construction
• The dual output voltage multiplier uses a Hartley ocillator instead of the original OPIC 'charge pump' concept.
This allows for a dual polarity adjustable DC voltage multiplier to be constructed using fewer components.
• The OPIC.45 is intended to be fitted into a U87 style body, with a triple layered headbasket for best results, although the stripboards will fit quite easily into a BM800 style body, if preferred.
• Just click on the image below for a PDF of the OPIC.45 project details •
OPIC.45TX is a transformer coupled version of the OPIC.45 circuit, fitted with a Neutrik NTE 1 transformer on the output.
• The impedance converter is functionally identical to the OPIC.45 version, but is fitted with a small transformer to provide a true balanced output in place of the single sided capacitively coupled standard OPIC.45 output, which uses passive impedance balancing.
• The dual output voltage multiplier uses a Hartley ocillator instead of the original OPIC 'charge pump' concept.
This allows for a dual polarity adjustable DC voltage multiplier to be constructed using fewer components.
• The OPIC.45TX is intended to be fitted into a U87 style body, with a triple layered headbasket for best results, although the stripboards will fit quite easily into a BM800 style body, if preferred.
• Just click on the image below for a PDF of the OPIC.45TX project details •
OPIC.43 is a new version of the original OPIC impedance converter and voltage multiplier.
It is functionally identical to the original, but has a number of revisions to make it easier to construct and calibrate...
• Simpler (and smaller) stripboard layouts for both the impedance converter and voltage multiplier boards.
• Fully adjustable voltage multiplier output, using a single rotary variable resistor.
• Smaller stripboards allow for easier construction and routing of the sleeved XLR power connections.
These connections are now made directly to the track side of each stripboard, for neatness and reliability...
(See the photo on the header page of the project PDF)
• Just click on the image below for a PDF of the OPIC.43 project details •
It is possible to use an LDC capsule in a basic configuration, without fitting a separate voltage multiplier for capsule polarisation.
The sensitivity will be slightly reduced by around 3dB, compared to the same capsule biased with 60v.

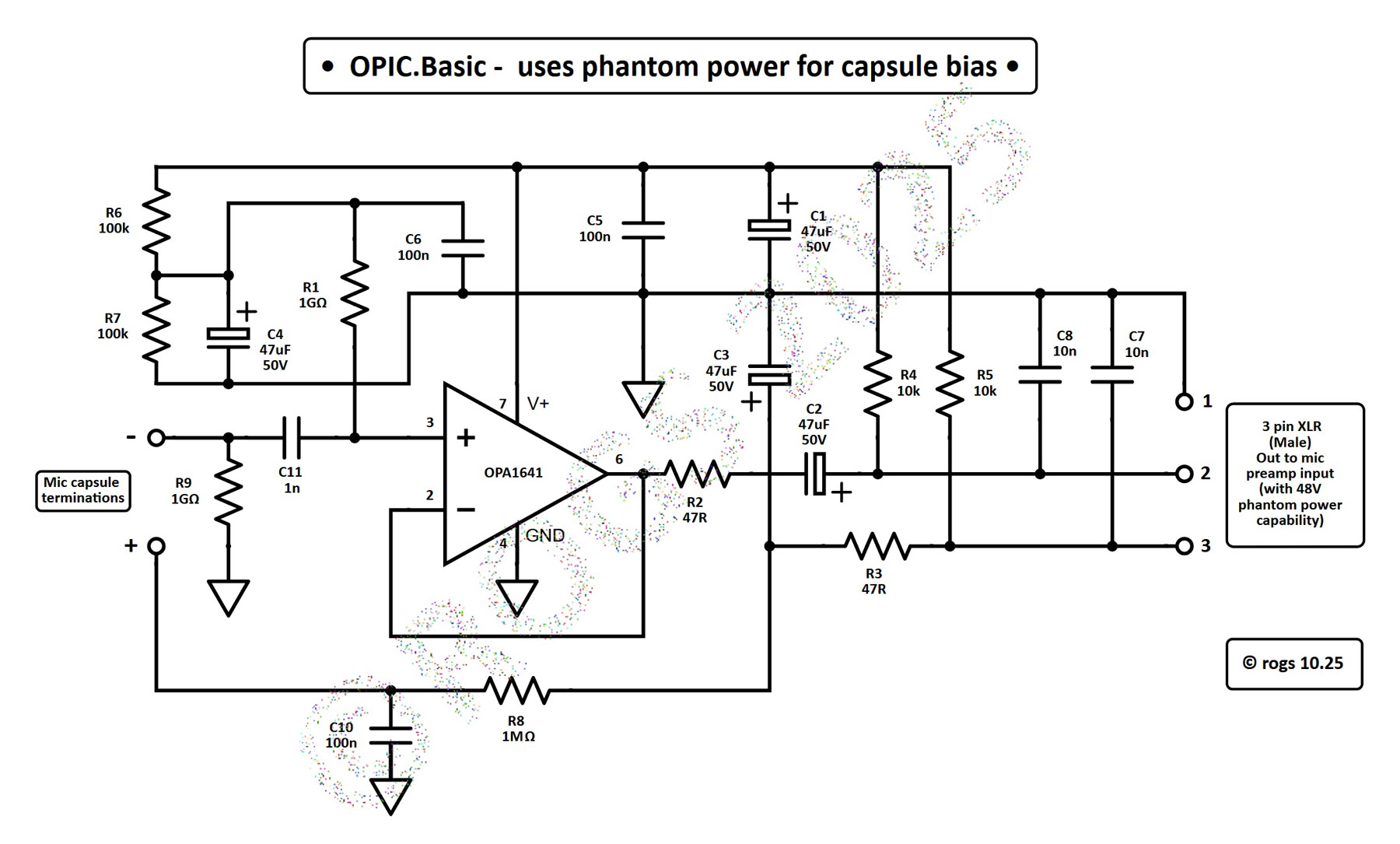

The OPIC.Basic circuit shown below uses the 48v phantom power to supply c.30v to the op-amp circuitry.
In addition, the non audio leg (pin3) supplies c.40v as the capsule polarisation voltage.
As there is essentially no current drawn by that high impedance capsule 'load', the system remains impedance balanced....
It's a simpler version that works well!
• Just click on the image below for a PDF of the OPIC.Basic project details •
The 'OPIC.Basic' project above is intended to replace both 'OPIC.42' versions, by simplifying them even further!...
You can still find the OPIC.42 project notes by clicking on either heading above.
